Available
4' wide panels. Also available 9" - 47" widths at 4' price
10', 12', 14' and 16' lengths or to your specifications.
Maximum length 24'.
Minimum width 9"
Specifications
Two pieces of 1/2" oriented strand board
(O.S.B.) laminated to 3 5/8" thick 2 lb density
polystyrene foam core for an overall thickness of
4 5/8". (R Value, 16.4) This size accommodates
2 x 4 floor joiner.
Also available with two pieces of 1/2" O.S.B.
laminated to 5 5/8" thick 2 lb density polystyrene
foam core for an overall thickness of 6 5/8". (R
Value, 24.6) This size accommodates 2 x 6 floor
joiner.

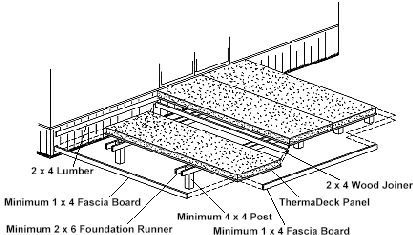

ThermaDeck™ Flooring System
JAMAR Construction Industries, Inc.
P.O. Box 4252 Fort Myers, FL 33918-4252
Florida State Cert. Gen. Contractor CG C059058
Features
Adds insulating value to floor
Excellent surface to accommodate enclosure
Simple design reduces construction time
Alternative to concrete slab when ground is frozen
Above ground insulation makes an easier task of leveling floor
